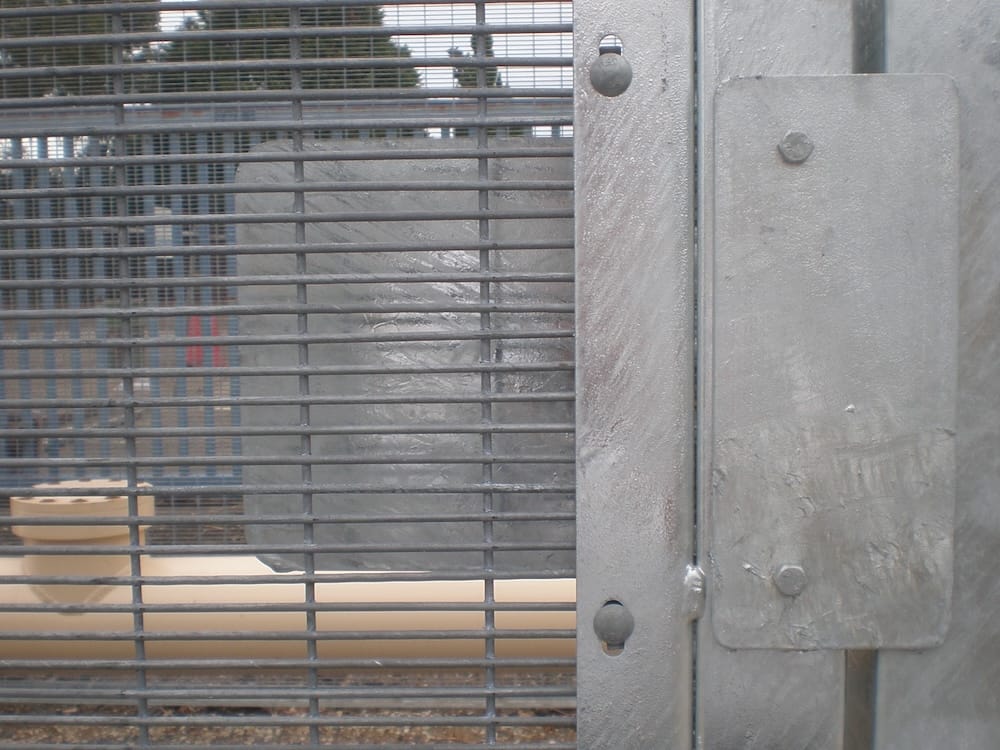

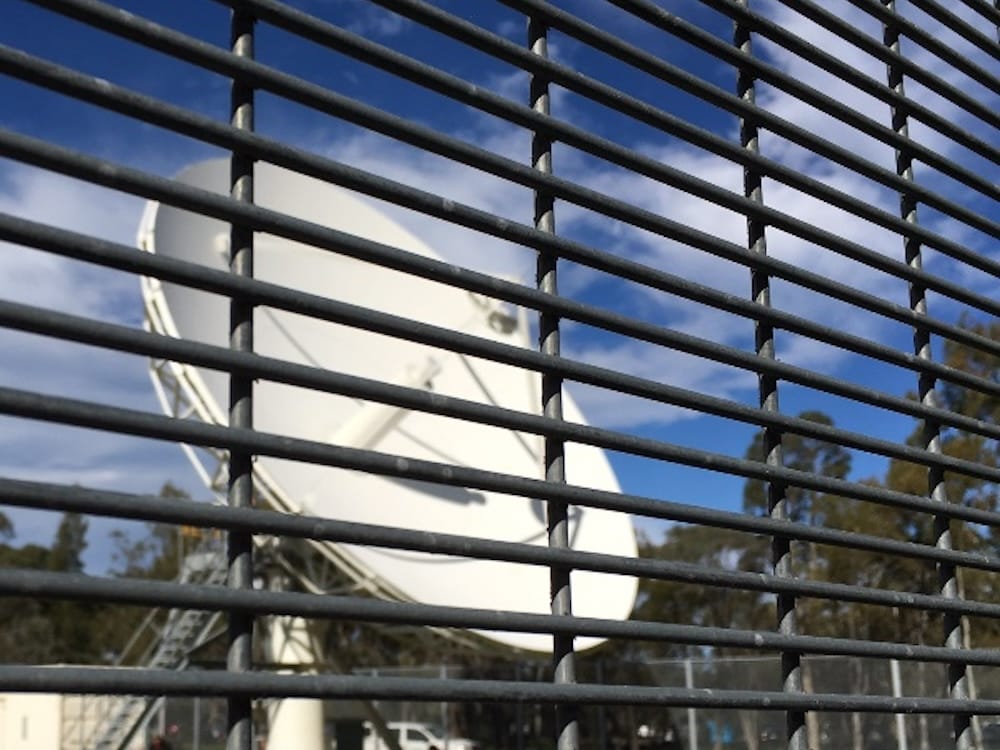

GuardForce® is our proprietary 358 welded mesh fence system. It has been principally designed to prevent unauthorised access to high hazard or value assets, such as rail corridors, correctional facilities, substations and airports. The standard arrangement is a 2400mm high sheet secured with tamper resistant fixings to specially designed posts and top and bottom rails. 358 mesh denotes vertical wires resistance welded at 3 inch (75mm) centres, horizontal wires at 0.5 inch (12.5mm) centres using a 8 gauge (Ø4mm) wire. The tight wire spacing makes the panel very hard to climb without the aid of tools and time consuming to cut.

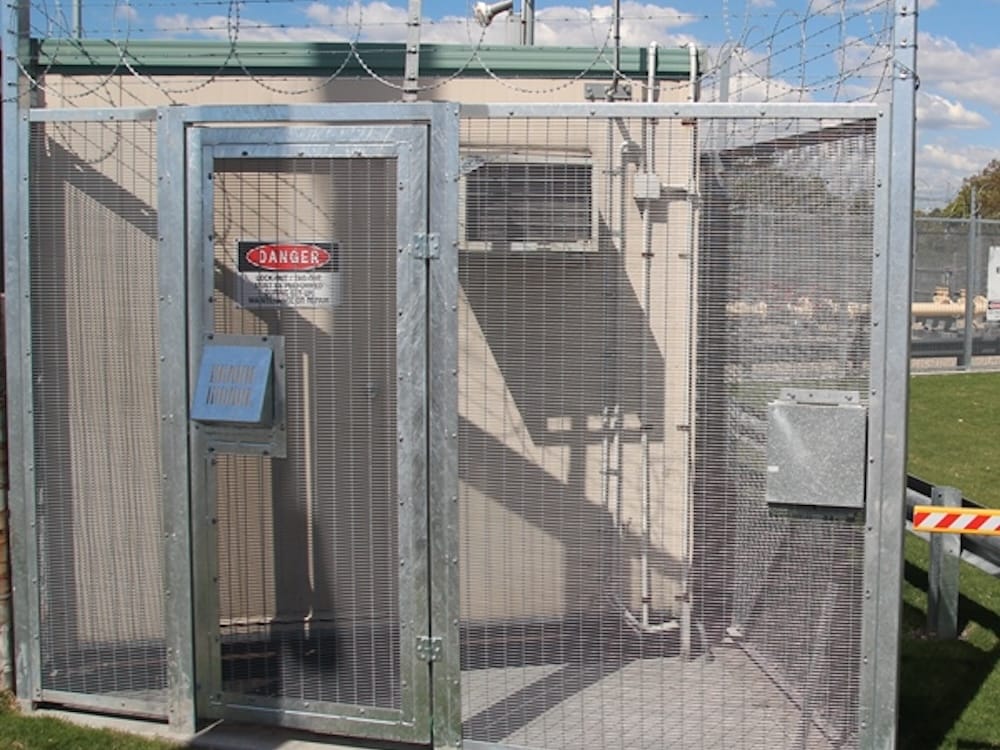

At the same time the mesh maintains a high level of surveillance through the fence to assist detection and recording of intruders. The fencing is combined with our heavy duty hinges and Bolt’nLock® locking hardware for an integrated solution.
| Property | Specification |
|---|---|
| Assembly Height | 2400mm or 3000mm Standard |
| Panel Length | 2400mm |
| Top Profile Options |

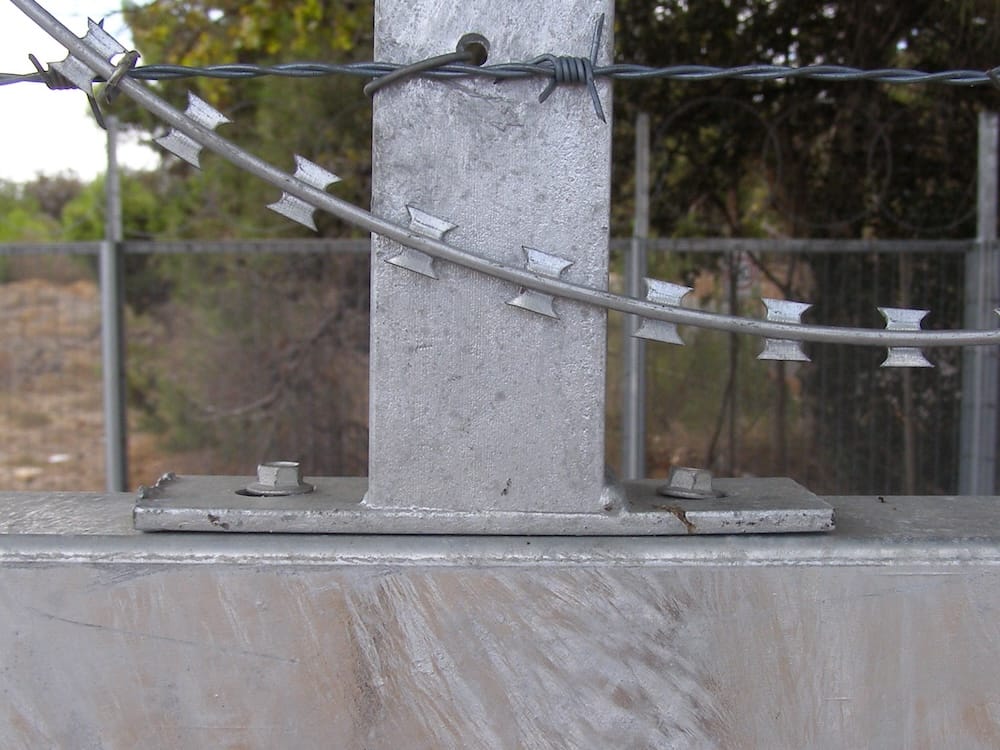

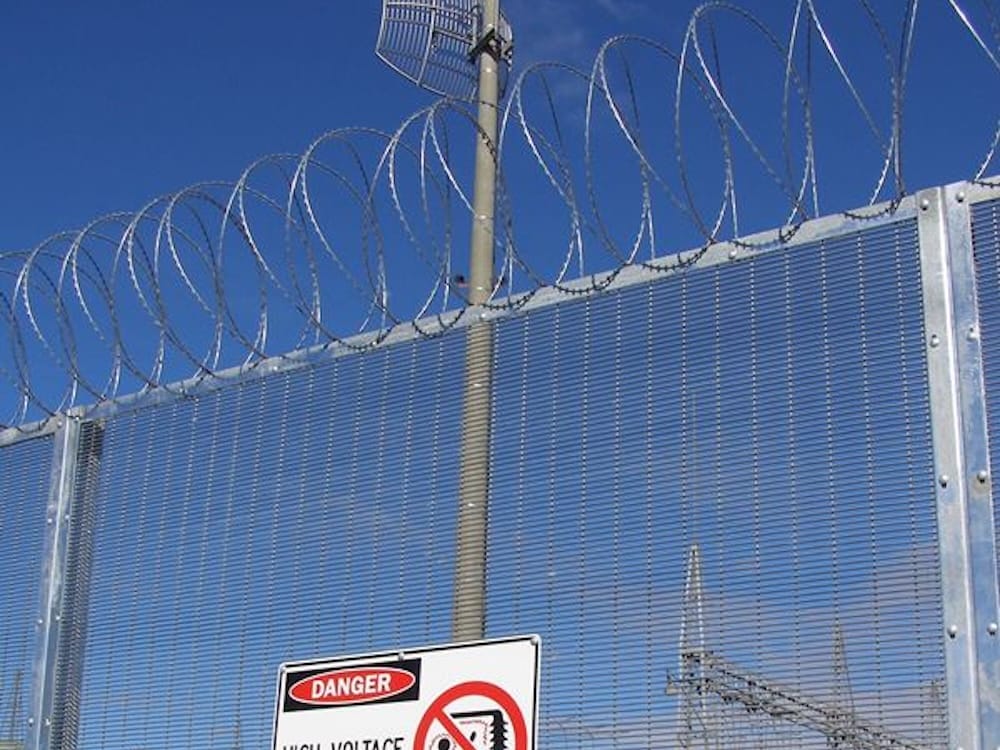

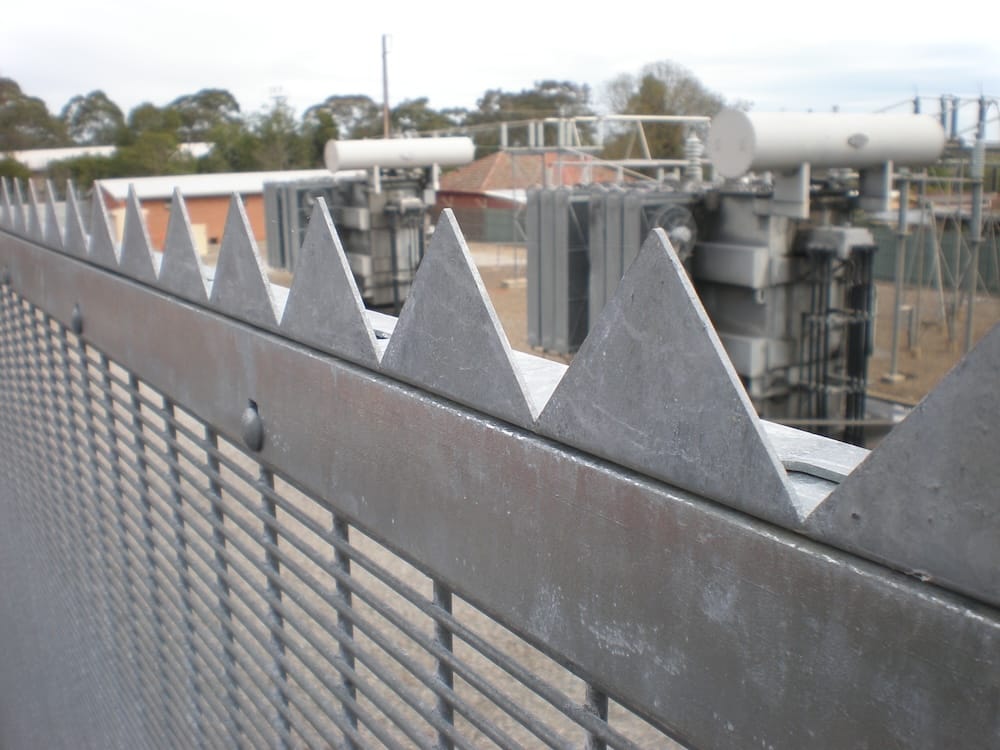

Repel Razor Tape Ø550mm Flat Loop Topping Repel Razor Tape Ø550mm Concertina Topping Repel Serrated Rail Topping |
| Rail Size | 50 X 50 X 4mm Equal Angle |
| Vertical Picket Size | 25x25x1.6mm square hollow tube extending 150mm above and below the horizontal rails |
| Post Size | 115 X 4 X 3250mm Long |
| Post Spacing | 2405mm Standard |
| Material |
358 Welded Mesh 12.7mm Horizontal Wire Centers 76.2mm Vertical Wire Centers Wire: Ø4mm Carbon Steel |
| Pre-treatment | 7 STAGE IMMERSION BATH AS4506 |
| Mesh Finish | 95% Zinc 5% Aluminium Alloy, Hot Dip Galvanised As4680 |
| Assembly Design | As/Nzs 1170.2 2002 Wind Actions |
| Mesh Design | En 10223-4:1998 & Bs 1722-14:2006 |
Do you think GuardForce® is perfect for your needs? Complete the form below and we’ll get back to you with a quote.
